Engineered for High-Rise Residential, Coastal Hurricane Zones, and Low-Energy Commercial Projects
Bridging European Engineering Precision with Global High-Rise Performance Standards

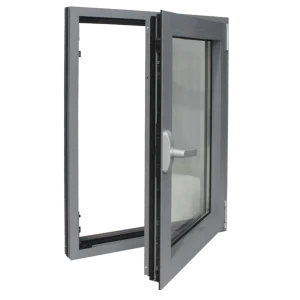

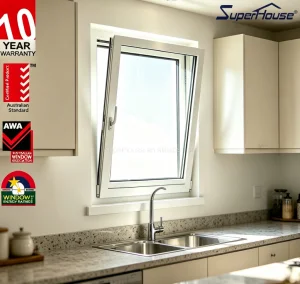

Aluminum tilt and turn window systems integrate multi-axis mechanical gearboxes. Turning the handle 90 degrees allows full inward casement swing for effortless 100% egress and interior glass cleaning. Turning 180 degrees tilts the top sash inward 10 to 15 degrees, creating dynamic micro-ventilation without draft turbulence.

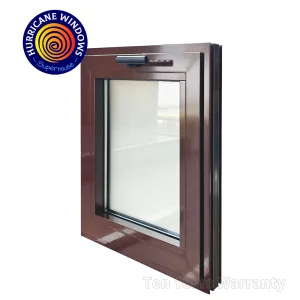

Utilizing multi-cavity T6063-T6 extruded aluminum profiles and triple-pane insulated glass units (IGU) with acoustic PVB laminates, our window systems achieve Sound Transmission Class (STC) ratings up to 45 dB, dampening urban noise and high-frequency wind pressure.
Unlike conventional sliding or single-hung windows, tilt and turn mechanisms engage high-tensile steel locking mushroom cams into structural keepers along the entire perimeter. This creates continuous compression seal against weather strips under high structural loads.
Quantitative Breakdown of Structural Alloy Standards and Thermal Barrier Components
Our architectural aluminum window systems are constructed using primary grade T6063-T6 aluminum alloy, providing yield strengths exceeding 170 MPa. Thermal performance is driven by structural Polyamide PA66-GF25 (25% Glass Fiber Reinforced) thermal break strips, eliminating conductive heat paths between outer and inner aluminum skins.
This barrier structure drastically reduces overall frame U-factors, mitigating interior condensation risk in freezing climates while reducing solar heat gain coefficient (SHGC) in tropical or desert environments.
| Performance Metric | Testing Standard | Achieved Rating Value |
|---|---|---|
| Thermal Transmittance (U-Factor) | NFRC 100 / EN ISO 10077 | 0.14 - 0.24 BTU/h·ft²·°F (0.8 - 1.3 W/m²K) |
| Air Infiltration Resistance | ASTM E283 / EN 12207 | Class 4 / < 0.01 cfm/ft² |
| Water Penetration Resistance | ASTM E331 / EN 12208 | 15 psf (750 Pa) - Class E1050 |
| Structural Wind Load | ASTM E330 / TAS 202 | ±90 psf (Design Pressure 90 DP) |
| Forced Entry Security | ASTM F588 / EN 1627 | Grade 40 / RC2 & RC3 Certified |
Grandex Door Solutions Co., Ltd. — Precision Engineering at Global Scale
Established in 2014, Grandex Door Solutions Co., Ltd. is a premier architectural window and entry door manufacturer operating from a modern 35,000 m² facility. With 16 years of industry expertise and 8 years of dedicated export experience, the company generates an annual export revenue of USD 28 million. Grounded in strong OEM and ODM trade backgrounds, our products primarily serve North America and Western Europe, supported by a network of over 1,200 supply chain partners. We cater to leading building material distributors, real estate developers, and commercial contractors. Quality is integral to our operations: supported by strict ISO 9001 certified internal testing and third-party laboratory verification, our 45-member QA team ensures rigorous quality control throughout production. Driven by an active R&D division with 85 specialized engineers, we introduced 120 new door designs last year and offer full custom solutions spanning custom dimensions, security locks, surface finishes, and decorative glass panels.
Tailored Engineering Applications for Diverse Commercial & Residential Typologies
High-altitude architectural fenestration requires structural deflection control under high wind pressure. Our engineered tilt & turn profile structures feature internal corner cleats welded with two-component polyurethane adhesive, supporting wind pressures up to 9000 Pa without structural distortion.

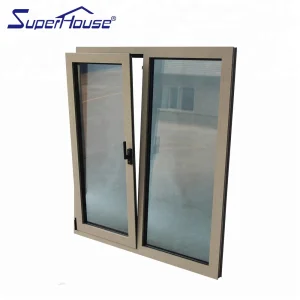

Designed for severe weather regions, our Florida HVHZ certified series utilizes heavy-gauge aluminum profiles paired with multi-layer SentryGlas® (SGP) interlayer glass. Tested under dynamic cyclic wind loads (TAS 201/202/203 protocols) to withstand wind-borne debris impacts at 50 ft/s.
Meeting the stringent criteria of Passivhaus Institute standards, our ultra-insulating tilt & turn systems incorporate continuous multi-cavity insulation foam fillers, triple-pane Low-E coatings, warm-edge composite spacers, and warm argon gas infill to prevent thermal bridge losses.
Secured with RC2 and RC3 European anti-burglary classification hardware, hidden heavy-duty hinges capable of holding sashes up to 300kg, drill-resistant gearboxes, and multi-point perimeter steel hooks to resist forced entry techniques.
Pre-Tested and Formally Certified for Seamless Regulatory Approval Across Key Target Markets
Fully compliant with AAMA/WDMA/CSA 101/I.S.2/A440 fenestration standards. Certified through NFRC for U-Factor and SHGC labeling, as well as Florida NOA (Notice of Acceptance) for High-Velocity Hurricane Zone (HVHZ) compliance including California Title 24 energy code integration.

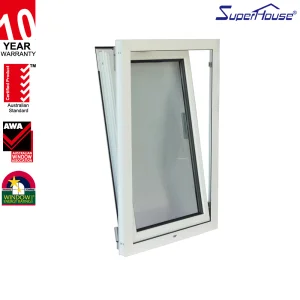

Custom tailored for New Zealand and Australian architectural demands under AS2047 and NZS 4211. Featuring structural water tightness resistance exceeding 600 Pa and high UV-resistant exterior powder coating finishes (AkzoNobel Interpon / AAMA 2605 compliant).
Manufactured under strict adherence to CE Mark (EN 14351-1), achieving top class ratings in EN 12207 air permeability, EN 12208 water tightness, and EN 12210 wind resistance along with ISO 9001:2015 production quality management protocols.
End-to-End B2B Project Customization, Surface Finishing & Logistics Guarantee
We provide architectural-grade surface finishes designed to withstand harsh marine, tropical, and industrial environments without chalking, fading, or micro-cracking:
Exporting over USD 28 million annually requires heavy-duty protection against oceanic freight damage:
Next-Generation Smart Integration & Next-Level Material Innovations
Integrating concealed concealed linear actuators powered by home automation systems (Zigbee/KNX APIs). Automatically tilting sashes based on real-time CO2 monitoring, interior humidity levels, or rain detection sensors.
Replacing traditional thick triple-pane glazing with 8.3mm ultra-thin Vacuum Insulated Glass units, yielding center-of-glass U-values as low as 0.06 BTU/h·ft²·°F (0.35 W/m²K) while reducing overall sash weight by 40%.
Injecting silica aerogel nanostructures into aluminum extrusions' thermal breaks, maximizing structural thermal performance for Arctic climate requirements without expanding profile depth.

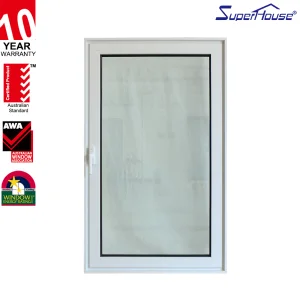

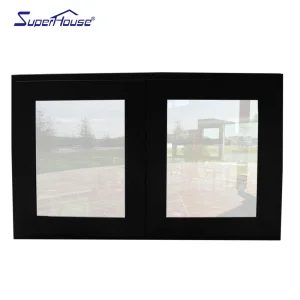

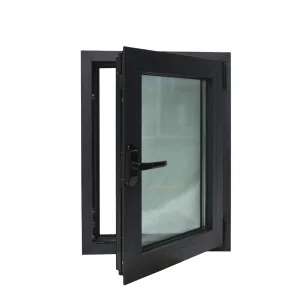

Explore High-Performance Commercial & Custom Tilt and Turn Profiles
