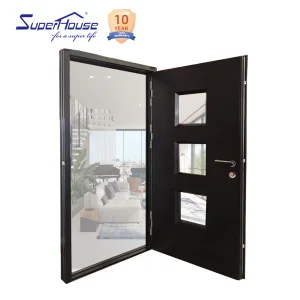

Explore our flagship structural aluminum pivot doors and certified fenestration products engineered for commercial and high-end residential projects globally.
An in-depth analysis of modern architectural fenestration, mechanical load redistribution, and thermal boundary performance.
In contemporary architectural design, the entrance portal serves as both an aesthetic centerpiece and a critical structural barrier against environmental stressors. Traditional side-hinged doors, constrained by cantilevered load distributions on side jambs, face severe physical limitations regarding panel weight, height, and width. Large-format aluminum pivot doors have revolutionized this dynamic by transferring vertical dead loads directly into the structural floor substrate through top and bottom pivot axes.
As premier Aluminum Doors Pivot Doors Manufacturer & Suppliers, Grandex Door Solutions Co., Ltd. bridges high-end architectural vision with rigorous structural engineering. Utilizing T6-grade extruded aluminum alloys, multi-chambered polyamide thermal breaks, and heavy-duty hydraulic floor springs capable of carrying up to 1,000 kg per leaf, our custom pivot systems deliver unrivaled spatial luxury while exceeding stringent building codes across North America, Western Europe, and coastal hurricane zones.

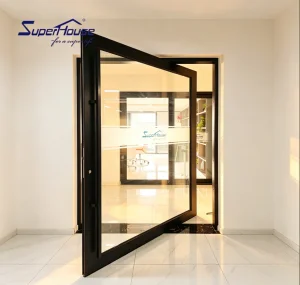

The fundamental mechanical advantage of an aluminum pivot door lies in its kinematics. By shifting the rotational axis inward from the frame edge—typically at a 1/3 offset or center-pivot location—the rotational torque exerted on the frame is dramatically reduced.
Vertical dead weight ($W$) is transmitted downward via heavy-duty stainless steel spindle assemblies directly to the reinforced floor slab, bypassing jamb flexure issues common in butt-hinge doors.
6063-T6 aluminum profiles engineered with thick outer walls (up to 3.0mm) provide high moment of inertia ($I_x$), guaranteeing panel deflection stays under $L/175$ under extreme wind pressure.
Integrated floor springs offer adjustable closing speeds, latching velocity, and soft-open backcheck features, mitigating wind-blow damage and operating smoothly up to 500,000 cycles.
Grandex Door Solutions Co., Ltd. delivers robust OEM/ODM manufacturing capability driven by data, precision, and continuous innovation.
Established in 2014, Grandex Door Solutions Co., Ltd. is a premier entry door manufacturer operating from a modern 35,000 m² facility. With 16 years of industry expertise and 8 years of dedicated export experience, the company generates an annual export revenue of USD 28 million. Grounded in strong OEM and ODM trade backgrounds, our products primarily serve North America and Western Europe, supported by a network of over 1,200 supply chain partners. We cater to leading building material distributors, real estate developers, and commercial contractors. Quality is integral to our operations: supported by strict ISO 9001 certified internal testing and third-party laboratory verification, our 45-member QA team ensures rigorous quality control throughout production. Driven by an active R&D division with 85 specialized engineers, we introduced 120 new door designs last year and offer full custom solutions spanning custom dimensions, security locks, surface finishes, and decorative glass panels.
How advanced material science elevates security, thermal insulation, and longevity in pivot door design.
Incorporating imported Polyamide PA66-GF25 reinforced glass-fiber insulation strips creates a structural thermal barrier. Reduces U-Factors down to $\le 0.22 \text{ BTU/h}\cdot\text{ft}^2\cdot^\circ\text{F}$, stopping heat transfer and condensation build-up in extreme cold or hot climates.
Coated with Fluorocarbon (PVDF) or AkzoNobel Interpon D2015 architectural powder finishes. Resists salt-spray corrosion (tested to ASTM B117 for over 3,000 hours), UV degradation, chalking, and color fading in coastal environments.
Seamless integration of motorized multi-point lock systems, biometrics, RFID, Bluetooth, and smart home connectivity. Concealed wiring channels maintain the clean, minimalist aesthetic of high-end entrance doors.
| Performance Parameter | Grandex Standard Specification | Testing & Compliance Standards |
|---|---|---|
| Structural Wind Load Resistance | Design Pressure (DP) up to +90 / -90 PSF | ASTM E330 / Miami-Dade TAS 202 |
| Impact Resistance (Hurricane Rating) | Large Missile Impact (Level D, 9-lb 2x4 @ 50 ft/s) | ASTM E1886 / E1996 / Florida NOA Approval |
| Air Infiltration & Water Penetration | Air: < 0.1 cfm/ft² | Water: 15 PSF (No leakage) | AAMA/WDMA/CSA 101/I.S.2/A440 & AS2047 |
| Thermal Transmittance (U-Value) | 0.19 – 0.26 BTU/h·ft²·°F (Double/Triple Glazed Low-E) | NFRC 100 / ISO 10077-1 Compliance |
| Acoustic Insulation (STC/OITC) | STC Rating: 38 dB – 45 dB with Laminated Glazing | ASTM E90 / ASTM E1425 Sound Attenuation |
| Hardware & Hinge Load Capacity | Heavy-Duty Floor Springs rated up to 1,000 kg (2,200 lbs) | EN 1154 / CE Certified Dynamic Fatigue Testing |
Engineered to adapt to localized regional building codes and aggressive environmental demands worldwide.

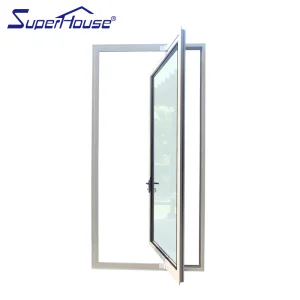

Specifically tailored for coastal markets in Florida, the Caribbean, and coastal Australia. Our impact-rated aluminum pivot doors utilize SentryGlas® (SGP) laminated interlayers and heavy-gauge structural extrusion profiles. They resist cyclic pressure loading and flying debris impacts, holding official Florida NOA (Notice of Acceptance) and AS2047 engineering clearances.

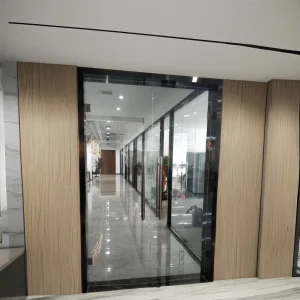

Designed for luxury boutique entrances, corporate headquarters, and luxury auto dealerships requiring massive spans (up to 4 meters high). Fitted with offset continuous weather-sealing brushes, magnetic automatic drop-down bottom seals, and commercial electromagnetic hold-open door closers tied into building fire safety systems.
Utilizing warm-edge spacers, argon-filled triple insulating glass units (IGU), and multi-cavity thermal break extrusions. Designed to eliminate thermal bridging, preventing frost condensation inside high-end residential chalets and mountain villas across Western Europe and North American alpine regions.
Step inside our 35,000 m² smart factory layout featuring precision CNC machinery, automated sorting lines, and stringent ISO 9001 QA protocols.
Demonstrating decades of technical mastery, authoritative compliance, and seamless enterprise partnership support.
Quality control is embedded into every manufacturing stage—from spectrographic raw alloy testing to ultrasonic corner weld inspections and salt spray chamber validation. We verify dimensions to $\pm 0.5\text{mm}$ tolerances prior to final protective wooden crate packaging.
Our R&D wing produces over 120 cutting-edge architectural door designs annually. Utilizing AutoDesk Inventor, SolidWorks, and thermal simulation software, we deliver custom shop drawings and 3D prototypes for commercial developer submittals within 72 hours.
Grandex products undergo rigorous third-party laboratory verification (Intertek, TUV, UL). Products hold NFRC ratings for energy conservation, Florida NOA approvals for HVHZ hurricane zones, CE marks for Europe, and AS2047 standard certificates for Australia.
Addressing core technical questions from architects, structural engineers, and global building material importers.

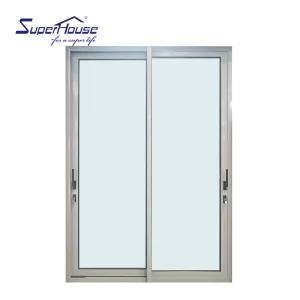

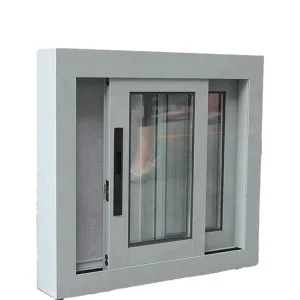

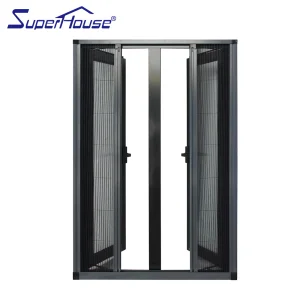

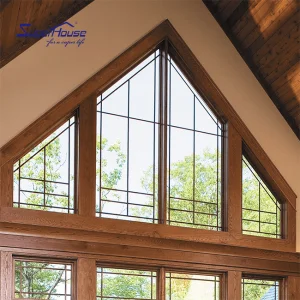

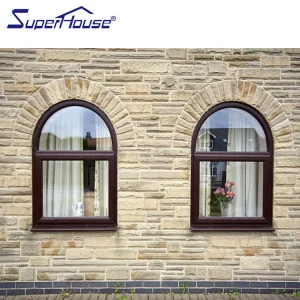

Explore our complementary high-performance thermal break windows and sliding door systems for holistic architectural projects.
