Engineered to withstand extreme velocity pressures, cyclonic winds, and severe atmospheric exposure.
Grandex Door Solutions Co., Ltd. operates at the intersection of metallurgical precision, architectural design, and certified extreme-weather resilience.
Established in 2014, Grandex Door Solutions Co., Ltd. is a premier entry door manufacturer operating from a modern 35,000 m² facility. With 16 years of industry expertise and 8 years of dedicated export experience, the company generates an annual export revenue of USD 28 million. Grounded in strong OEM and ODM trade backgrounds, our products primarily serve North America and Western Europe, supported by a network of over 1,200 supply chain partners. We cater to leading building material distributors, real estate developers, and commercial contractors.
Quality is integral to our operations: supported by strict ISO 9001 certified internal testing and third-party laboratory verification, our 45-member QA team ensures rigorous quality control throughout production. Driven by an active R&D division with 85 specialized engineers, we introduced 120 new door designs last year and offer full custom solutions spanning custom dimensions, security locks, surface finishes, and decorative glass panels.
Understanding the physics behind wind pressure resistance, dynamic deflections, and structural envelope integrity.
In modern commercial and high-end residential architecture, the primary structural vulnerability under extreme atmospheric conditions resides within exterior wall openings. Entry doors are not merely dynamic access portals; they are structural load-bearing components designed to isolate interior environments from tremendous positive and negative wind pressures created during severe windstorms, typhoons, and hurricanes.
Dynamic wind load forces calculated per ASCE 7 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures) demonstrate that peak velocity pressure ($q_z$) increases exponentially with height and localized exposure conditions. The fundamental formula governing velocity pressure is expressed as:
Grandex Door
q_z = 0.613 × K_z × K_zt × K_d × K_e × V² (N/m²)When wind flows past an entry door assembly, it creates massive positive frontal pressure while simultaneously generating severe negative suction pressure on the leeward side. If the structural deflection of the door panel or frame exceeds $L/175$ of the clear span, perimeter seals fail instantly. This failure allows rapid air infiltration, leading to structural interior pressurization, glass shattering, and potential structural envelope collapse.
| Performance Standard | Structural Parameter | Grandex Standard Specification | Global Compliance Certification |
|---|---|---|---|
| ASTM E330 / TAS 202 | Structural Performance (Uniform Static Air Pressure) | Tested up to ±105 PSF (Design Pressure DP70 - DP100) | Miami-Dade NOA / Florida Building Code (FBC) |
| ASTM E1886 / E1996 | Large & Small Missile Impact Resistance | 9 lb 2x4 lumber at 50 ft/s (34 mph impact load) | NFRC / AAMA / WDMA Certified |
| AS2047 / AS1170.2 | Cyclic Wind Pressure Loading (Australian Standard) | 10,000 cycles of positive/negative wind load stress | Standard Australia SAI Global Compliance |
| EN 12207 / EN 12208 | Air Permeability & Water Tightness | Class 4 (600 Pa) Air / Class E1050 (1050 Pa) Water | CE Mark / European Norm Certification |
Market expansion, climate resilience mandates, and international procurement standards shaping high-wind entry systems.
Driven by strict Florida Building Codes (FBC) and High Velocity Hurricane Zone (HVHZ) requirements, commercial developments in the Gulf Coast and Eastern Seaboard mandate entry systems capable of resisting missile impact and cyclic water pressure intrusion without mechanical failure.
Coastal developments across East Asia, Australia, and Oceania face extreme Super-Typhoons. Procurement trends favor heavy-duty structural aluminum profile entry doors equipped with multi-point stainless steel locking bars and thermal break insulation to handle severe humidity.
European developments focus heavily on combining structural wind deflection parameters with near-zero U-factors (Passivhaus requirements). Thermally broken extruded aluminum with multi-chamber polyamide insulating strips (PA66GF25) dominates high-end commercial specs.
Step-by-step technological workflow within Grandex's 35,000 m² automated production plant.
Grandex's structural door manufacturing facility utilizes high-precision CNC multi-axis centers, automated material sorting loops, and high-frequency milling machinery. Every door profile undergoes rigorous processing to guarantee sub-millimeter tolerances essential for weather-tight structural interlock mechanisms.
Grandex's engineering R&D direction for thermal efficiency, smart access security, and extreme environment durability.
Replacing standard PVB interlayers with SentryGlas® (SGP) ionoplast technology. SGP provides 5 times the tear strength and 100 times the rigidity of conventional laminated glass, preventing glass panel collapse even after severe impact fragmentation under sustained gale force winds.
Integration of heavy-gauge 316 stainless steel multi-point gearboxes driving hardened steel deadbolts into reinforced frame strike plates. Ensures uniform pressure distribution along the entire perimeter, eliminating frame warping under cyclic negative pressure conditions.
Engineered thermal break cavities using glass-fiber reinforced polyamide strips (PA66GF25) filled with high-density aerogel insulation. Achieves exceptional thermal isolation (U-values below 0.24 BTU/hr·ft²·°F) without compromising torsional rigidity against high dynamic wind stress.
Engineered synthetic EPDM rubber seal profiles incorporating continuous vulcanized corner keys. Guarantees zero water penetration at 1,050 Pa cyclic pressure testing while providing acoustic dampening ratings up to STC 45 (Sound Transmission Class).
Strategic risk mitigation, custom structural modeling, and global supply chain reliability for large-scale projects.
Navigating global building regulations requires detailed engineering documentation, structural calc sheets, and reliable production schedules. Grandex Door Solutions provides complete end-to-end B2B architectural support for real estate developers, hotel chains, and distributors.
Our 85-member R&D engineering department provides full CAD elevation shop drawings, structural anchor calculations, and BIM models tailored to specific project wind zone demands (ASCE 7-16 / EN 1991-1-4).
Grandex products undergo rigorous third-party verification to meet North American (NFRC, AAMA, Miami-Dade NOA, Florida Product Approval), Australian (AS2047, AS1288), and European (CE, EN 14351-1) mandates.
Full customization capability across door sash profiles, architectural finishes (Fluorocarbon PVDF coating, Anodizing, AkzoNobel powder coating), custom sidelights, transoms, smart biometrics, and heavy-duty pivot hardware.
Comprehensive engineering insights into wind load performance, thermal ratings, and global B2B procurement processes.

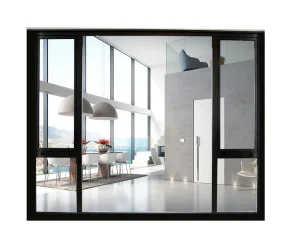

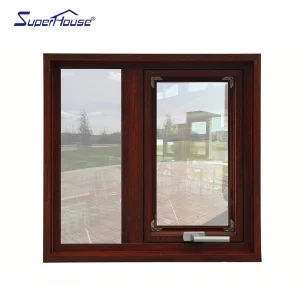

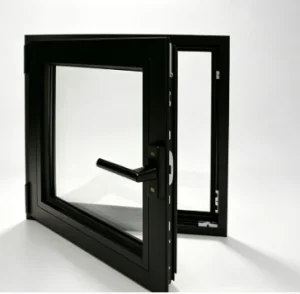

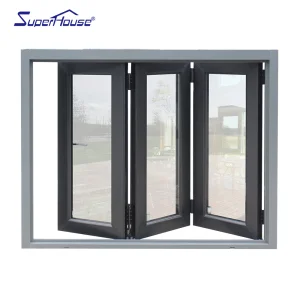

Explore our full portfolio of engineered entry doors, thermal casements, awnings, and custom structural window units.
