Rigorously tested for wind load resistance, thermal insulation (NFRC certified), acoustic attenuation, and modern architectural aesthetics.
An engineering analysis of structural integrity, safety compliance, energy codes, and modern building envelope trends in global markets.
In contemporary architecture, security is no longer an afterthought. Laminated glass aluminum doors combine high-tensile extrusion frames (such as 6063-T6 aluminum) with laminated glazing featuring Polyvinyl Butyral (PVB) or SentryGuard Plus (SGP) interlayers. Unlike standard tempered glass that shatters upon severe impact, laminated glass holds structural integrity even when fractured, thwarting forced entry, ballistic threats, and extreme storm impacts.
With strict energy performance building codes worldwide (such as ASHRAE 90.1, IECC, and Title 24), thermal break technology is imperative. Utilizing continuous polyamide (PA66GF25) thermal struts inserted between aluminum extrusions breaks the heat transfer bridge. Combined with Low-E coated laminated double or triple insulating units (IGUs), these systems drastically lower overall U-factors and Solar Heat Gain Coefficients (SHGC).
Urban density and proximity to transportation hubs demand superior acoustic isolation. Laminated glass acts as a natural dampening viscoelastic core. When coupled with engineered multi-point locking systems and resilient EPDM perimeter gaskets, aluminum laminated entrance systems achieve Sound Transmission Class (STC) ratings exceeding 40-45 dB, providing pristine indoor acoustic comfort.
Technical Insight: China's manufacturing sector has evolved from low-cost mass production to advanced precision engineering. Leading Chinese exporters integrate automated CNC machineries, robotic sealant dispensing, and certified testing laboratories (conforming to NFRC, AAMA, CSA, and CE standards) to supply custom fenestration solutions to global developers at optimized total cost of ownership (TCO).
Understanding the mechanical properties, alloy selection, and interlayer chemistry for optimal architectural specification.
| Parameter / Feature | Standard PVB Laminated Glass | SGP (SentryGlas®) Laminated Glass | Grandex Custom Engineered System |
|---|---|---|---|
| Interlayer Shear Modulus | Low (~0.6-1.5 MPa at room temp) | High (~100-300 MPa at room temp) | Optimized based on structural wind-load requirements |
| Impact Resistance Class | Standard Human Impact & Anti-burglary | Hurricane Impact (Large Missile Level D/E) | ASTM E1996 & TAS 201/202/203 Compliant |
| Aluminum Alloy Profile | Standard Commercial Aluminum | Standard Commercial Aluminum | 6063-T6 / 6061-T6 High Precision Extrusions |
| Thermal Insulation (U-Factor) | 1.8 - 2.4 W/m²K (Non-thermal break) | 1.6 - 2.2 W/m²K (Non-thermal break) | ≤ 1.1 - 1.4 W/m²K (Polyamide Thermal Break PA66GF25) |
| Acoustic Performance (STC) | 35 - 38 dB | 36 - 40 dB | 38 - 45+ dB (Multi-chamber IGU with PVB/Acoustic Interlayer) |
| Finishing Options | Standard Powder Coating | Standard Powder Coating | Qualicoat Powder Coating, Anodized 25μm, PVDF 3-Coat Paint |
Established leader in structural entrance solutions, operating a high-capacity smart manufacturing ecosystem for global markets.
Established in 2014, Grandex Door Solutions Co., Ltd. is a premier entry door manufacturer operating from a modern 35,000 m² facility. With 16 years of industry expertise and 8 years of dedicated export experience, the company generates an annual export revenue of USD 28 million. Grounded in strong OEM and ODM trade backgrounds, our products primarily serve North America and Western Europe, supported by a network of over 1,200 supply chain partners. We cater to leading building material distributors, real estate developers, and commercial contractors. Quality is integral to our operations: supported by strict ISO 9001 certified internal testing and third-party laboratory verification, our 45-member QA team ensures rigorous quality control throughout production. Driven by an active R&D division with 85 specialized engineers, we introduced 120 new door designs last year and offer full custom solutions spanning custom dimensions, security locks, surface finishes, and decorative glass panels.
From raw alloy profile selection to automated CNC machining, intelligent sorting, and rigorous performance testing.
From coastal high-velocity hurricane zones to urban multi-family developments, Grandex provides fully compliant structural fenestration.
In regions like Florida, the Caribbean, and Southeast Asia, doors must withstand extreme wind pressure and debris impact. Our impact-resistant aluminum doors incorporate SGP laminated glass engineered to meet Florida Building Code (FBC) HVHZ requirements and ASTM E1886/E1996 standards.

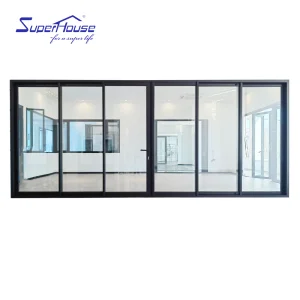

For hospitality projects demanding seamless indoor-outdoor transitions and low noise levels, Grandex provides ultra-slim aluminum sliding stacker doors and heavy-duty bi-folding doors with high STC ratings and integrated PTAC louvers for HVAC compatibility.
Heavy foot traffic requires structural strength and security. Our commercial double casement doors utilize reinforced German multi-point locking hardware, heavy-duty continuous hinges, and thermal-break architectural frames designed for high usage cycles.
Anticipating energy efficiency mandates and smart building integration from 2025 through 2030.
Integrating dynamic tinting laminated glass into aluminum frames to dynamically control solar heat gain via IoT smart building systems.
Developing structural composite thermal breaks that permit sub-20mm frame sightlines without compromising wind-load resistance (DP rating > 70 PSF).
Transitioning 80% of billet procurement to hydro-powered recycled aluminum, cutting embedded carbon footprint by up to 65%.
Combining Building-Integrated Photovoltaic (BIPV) semi-transparent glass into entrance systems to generate net-positive clean energy.
Explore our full range of custom bi-folding, sliding stacker, casement, and hurricane impact doors.
Answers to common engineering, export compliance, and customization inquiries.
SentryGlas® (SGP) interlayers are five times tougher and up to 100 times stiffer than standard PVB materials. This means that even if the glass breaks, the SGP interlayer maintains structural stiffness, preventing the glass pane from sagging or collapsing out of the aluminum frame. SGP is highly recommended for hurricane-prone zones, blast protection, and large unsupported glass entrance facades.
Grandex products undergo rigorous third-party laboratory testing. Our thermal break profiles and laminated IGUs are NFRC certified for U-factor and SHGC values. Furthermore, our hurricane impact line adheres to ASTM E1886/E1996 and Florida Building Code (HVHZ) standards, while European exports comply with CE (EN 14351-1) requirements.
Yes. Backed by an 85-member R&D engineering team and over 35,000 m² of smart CNC-equipped production space, Grandex provides full ODM/OEM customization. We customize aluminum extrusion profiles, thermal break barrier widths, glass tinting/coatings, multi-point lock hardware, and powder-coated surface finishes to match exact project blueprints.
Standard production lead time is 30 to 45 days depending on design complexity and glass customization. All items are packed using heavy-duty export standard protection: protective PE film wrapping, corner guards, air-cushioned bubble wrap, and fully enclosed IPPC-certified fumigated plywood crates to ensure zero-damage sea transport.
